Feature Extractor Widget

After selecting your image stack, you need to extract the features. Later, these image features will be used as inputs for training a Random Forest model, and predicting annotation masks.

Info

In deep learning, the output of an Encoder model is called embeddings or features.

You can bring up the Feature Extractor widget from the napari Plugins menu:

plugins menu

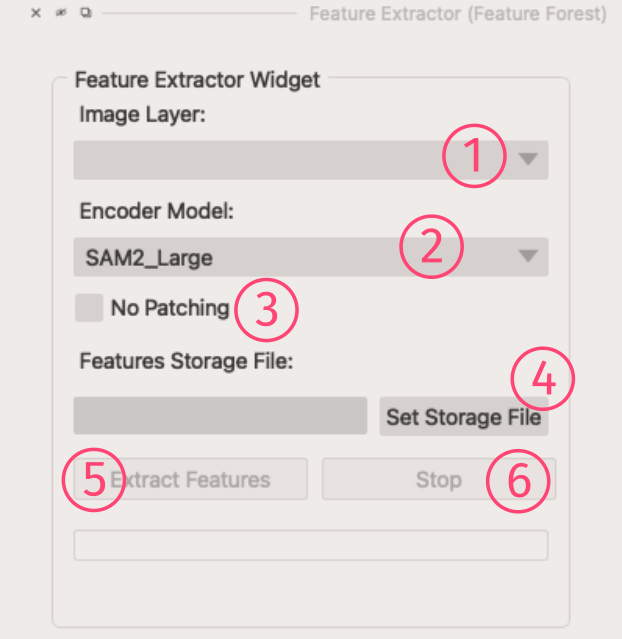

Widget Tools Description

Feature Extractor

  1. Image Layer: To select your current image stack.
  2. Encode Model: Sets which model you want to use for feature extraction.
    The FF plugins, by default, comes with MobileSAM, SAM (huge), DINOv2, SAM2 (large), and SAM2 (base) models. It is also possible to introduce a new model by adding the model adapter class.
  3. Features Storage File: Where you want to save the features as an HDF5 file.
  4. Extract Features button: Will run the feature extraction process.
  5. Stop button: To stop the extraction process!

The extraction process might take some time based on number of image slices and the image resolution. This is due to the fact that in FF we turn an image into overlapping patches, then pass those patches to the encoder model to get the features. Why we do this? We need to aquire a feature vector per each pixel and not for the whole image.

Model Selection

Our experiments tell us usually the SAM2 (large) model works the best. However, for less complicated images, using MobileSAM or DINOv2 might also result in a good segmentation as they are lighter and faster.

Note

When you use a model for the first time, the model's weight will be downloaded from their repository. So, you might hit a little delay at the first use of model.

Once you have your image features extracted, you can use the Segmentation widget to generate your image masks.
